Product Details
  • Place of Origin:  China
  • Brand Name:  kaitech
  • Model Number:  QH69

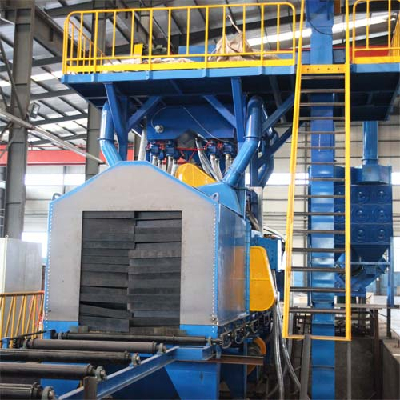

QH69 H BEAM shot blasting machine

It is mainly applied to remove the stress and surface rust of large-sized or H-shaped steel structural components in the industries, like bridge, building, etc.

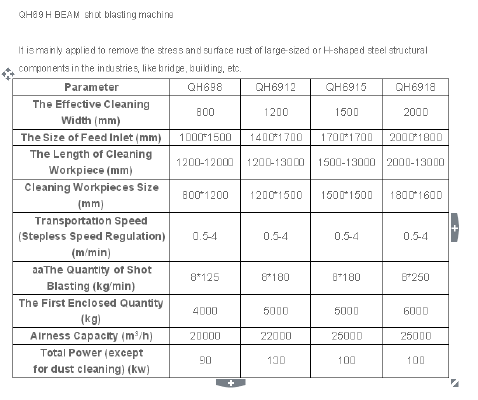

Parameter

QH698

QH6912

QH6915

QH6918

The Effective Cleaning
Width (mm)

800

1200

1500

2000

The Size of Feed Inlet (mm)

1000*1500

1400*1700

1700*1700

2000*1800

The Length of Cleaning
Workpiece (mm)

1200-12000

1200-13000

1500-13000

2000-13000

Cleaning Workpieces Size (mm)

800*1200

1200*1500

1500*1500

1800*1600

Transportation Speed
(Stepless Speed Regulation)
(m/min)

0.5-4

0.5-4

0.5-4

0.5-4

aaThe Quantity of Shot
Blasting (kg/min)

8*125

8*180

8*180

8*250

The First Enclosed Quantity (kg)

4000

5000

5000

6000

Airness Capacity (m3/h)

20000

22000

25000

25000

Total Power (except
for dust cleaning) (kw)

90

130

180

180
